Interface Relay Module
ONE CHANGE OVER - DC COIL VOLTAGE
Technical Information
1/2/4/6/8/16 channels other than specified available on request
By using jumper caps, remove all jumper caps to make relay independen
3 mm green LED for input status
0°C to 50°C
Features
- Available in 1/2/4/6/8/16 Channels.
• Coil Voltage 5/12/24/48V DC.
• Switching Current 12A at 24V DC/ 250V AC.
• Freewheeling Diode across relay coil for protection.
• Jumpers are provided for selection between positive/
negative looping.

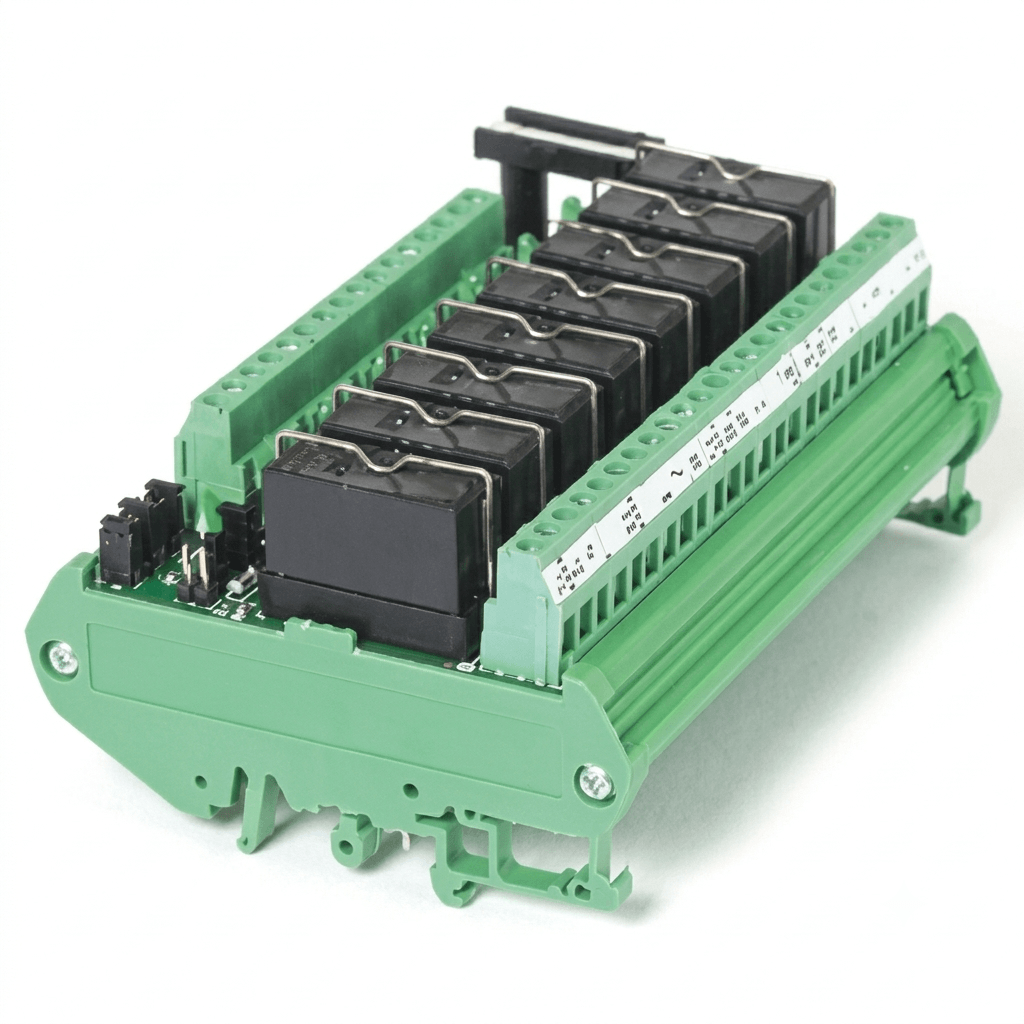

ONE CHANGE OVER - DC COIL VOLTAGE (WITH G2R RELAY)
Technical Information
1/2/4/6/8/16 channels other than specified available on request
By using jumper caps, remove all jumper caps to make relay independent
3 mm green LED for input status
0°C to 50°C
Features
• Available in 1/2/4/6/8/16 Channels.
• Coil Voltage 5/12/24/48/110V DC.
• Switching Current 10A at 30V DC/ 230V AC.
• Freewheeling Diode across relay coil for protection.
ONE CHANGE OVER - AC COIL VOLTAGE
Technical Information
1/2/4/6/8/16 channels other than specified available on request
3 mm green LED for input status
0°C to 50°C
Features
- Available In 1/2/4/8/16 Channels.
- Coil Voltage 24/110/230V AC.
- Switching Current 10A at 30V DC/ 250V AC.
- Freewheeling Diode across relay coil for protection

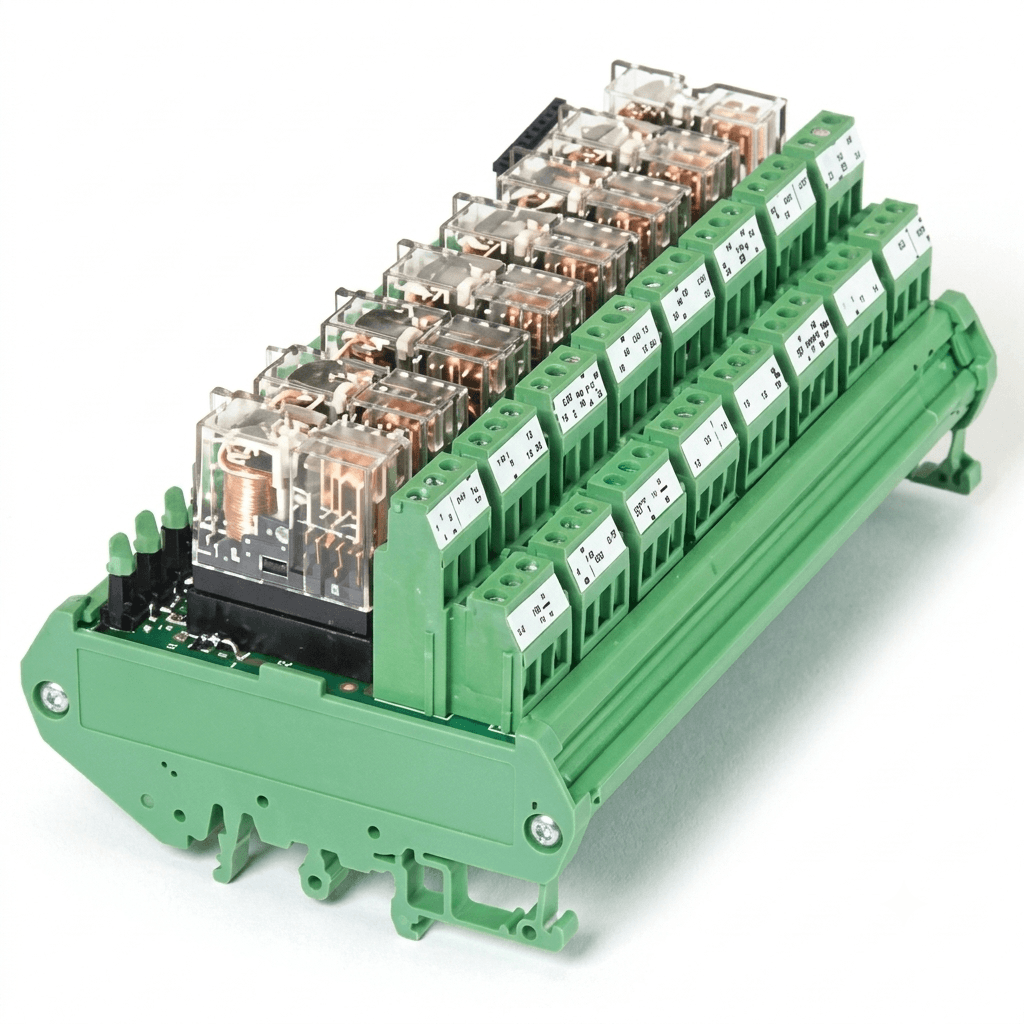

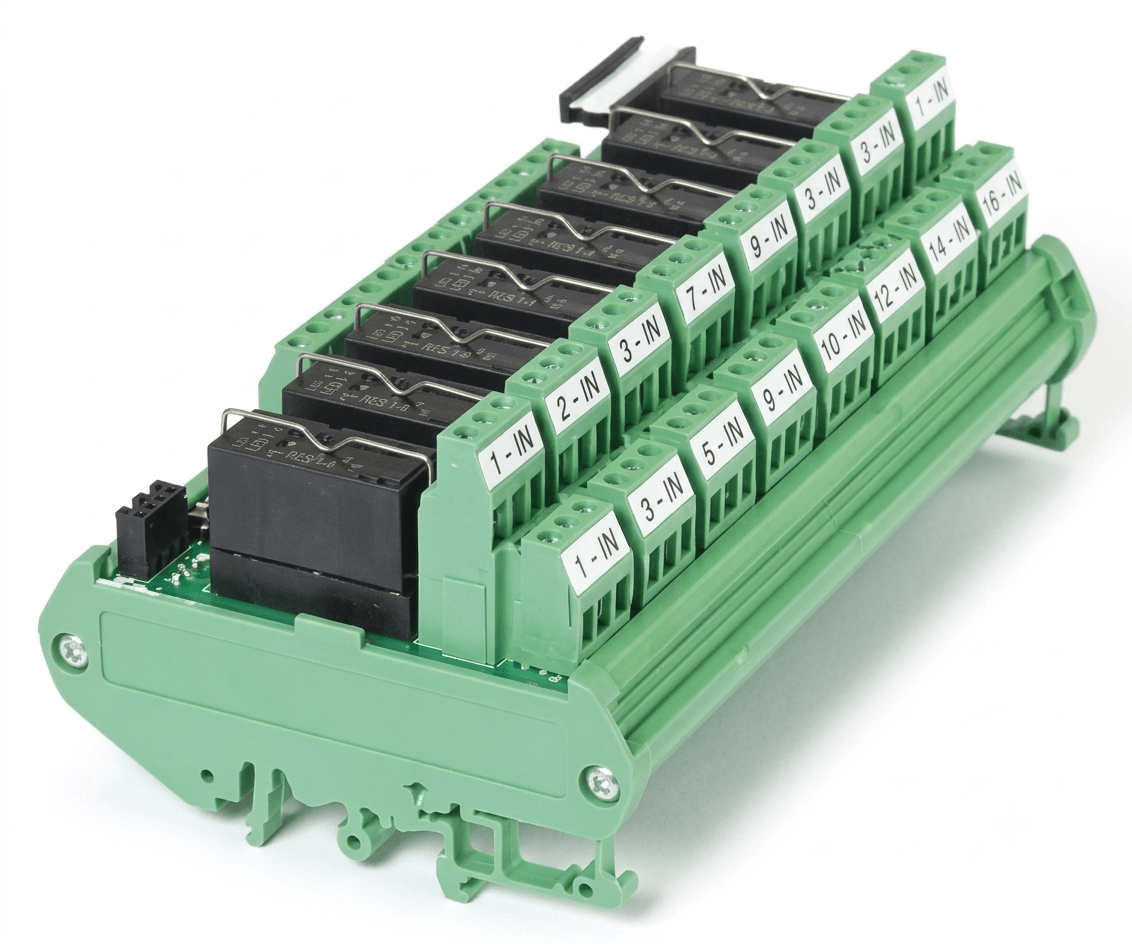

TWO CHANGE OVER - DC COIL VOLTAGE
Technical Information
1/2/4/6/8/16 channels other than specified available on request
By using jumper caps, remove all jumper caps to make relay independent
3 mm green LED for input status
0°C to 50°C
Features
• Available in 1/2/4/8/16 Channels
• Coil Voltage 5/12/24/48V DC
• Switching Current 5A at 30V DC/250V AC
• Freewheeling Diode across relay coil for protection
TWO CHANGE OVER - DC COIL VOLTAGE (WITH G2R RELAY)
Technical Information
1/2/4/6/8/16 channels other than specified available on request
By using jumper caps, remove all jumper caps to make relay independent
3 mm green LED for input status
0°C to 50°C
Features
• Available in 1/2/4/8/16 Channels
• Coil Voltage 5/12/24/48/110V DC
• Switching Current 5A at 30V DC/230V AC
• Freewheeling Diode across relay coil for protection
TWO CHANGE OVER - AC COIL VOLTAGE
Technical Information
1/2/4/6/8/16 channels other than specified available on request
3 mm green LED for input status
0°C to 50°C
Features
- Available In 1/2/4/8/16 Channels.
- Coil Voltage 24/110/230V AC.
- Switching Current 5A at 30V DC/ 250V AC.
- Freewheeling Diode across relay coil for protection

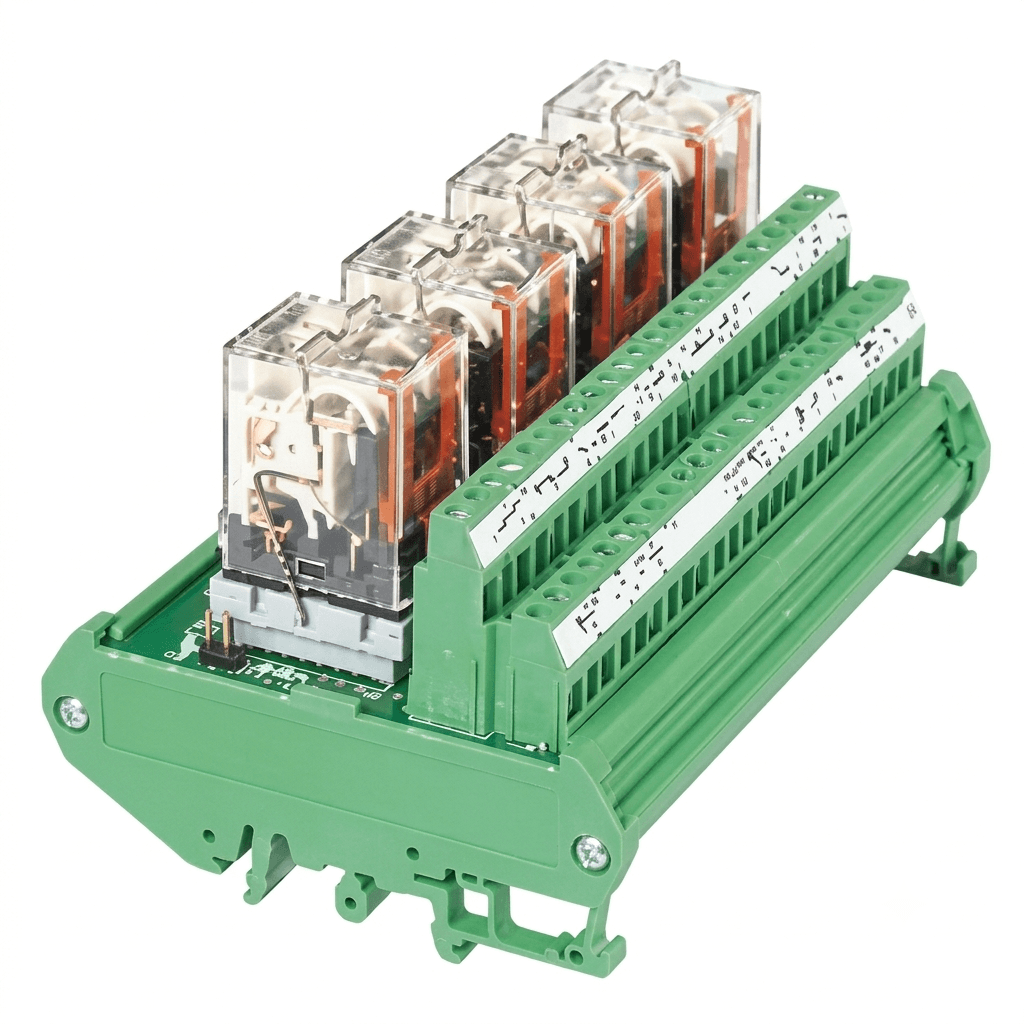

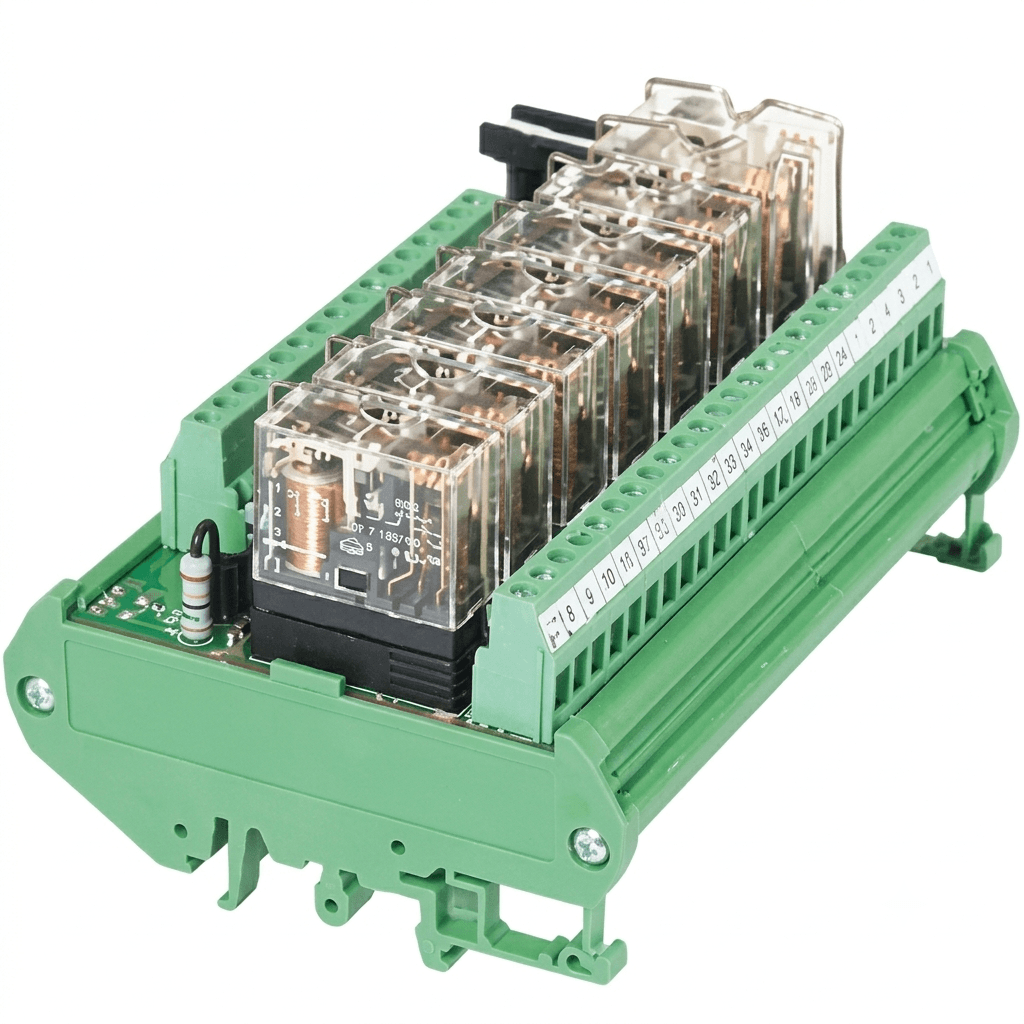

FOUR CHANGE OVER - AC & DC COIL VOLTAGE
Technical Information
1/2/4/8 channels other than specified available on request.
By using jumper caps, remove all jumper caps to make relay independent
3 mm green LED for input status
Features
- Available in 1/2/4/8 Channels.
- Coil Voltage 12/24V DC & 110/230V AC.
- Switching Current 3A at 30V DC/ 250V AC.
- Freewheeling Diode across relay coil for protection.

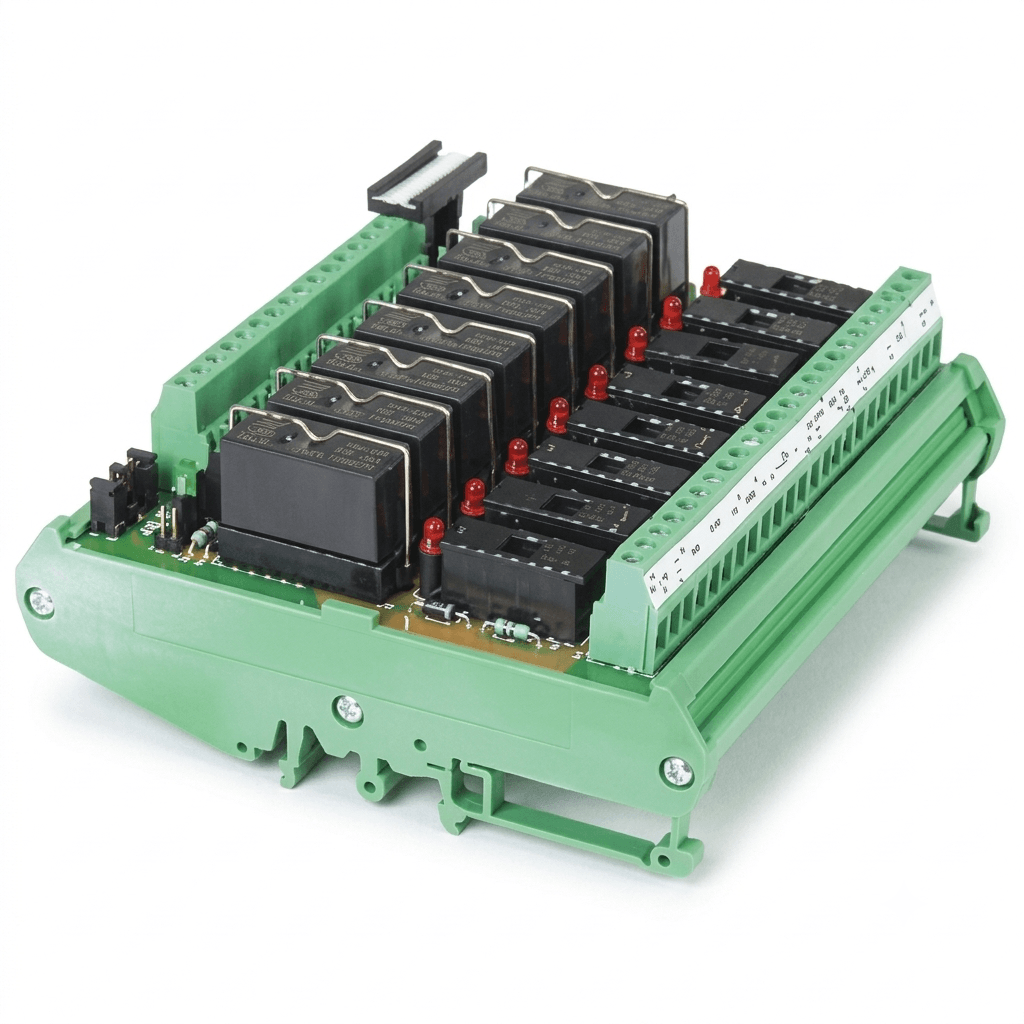

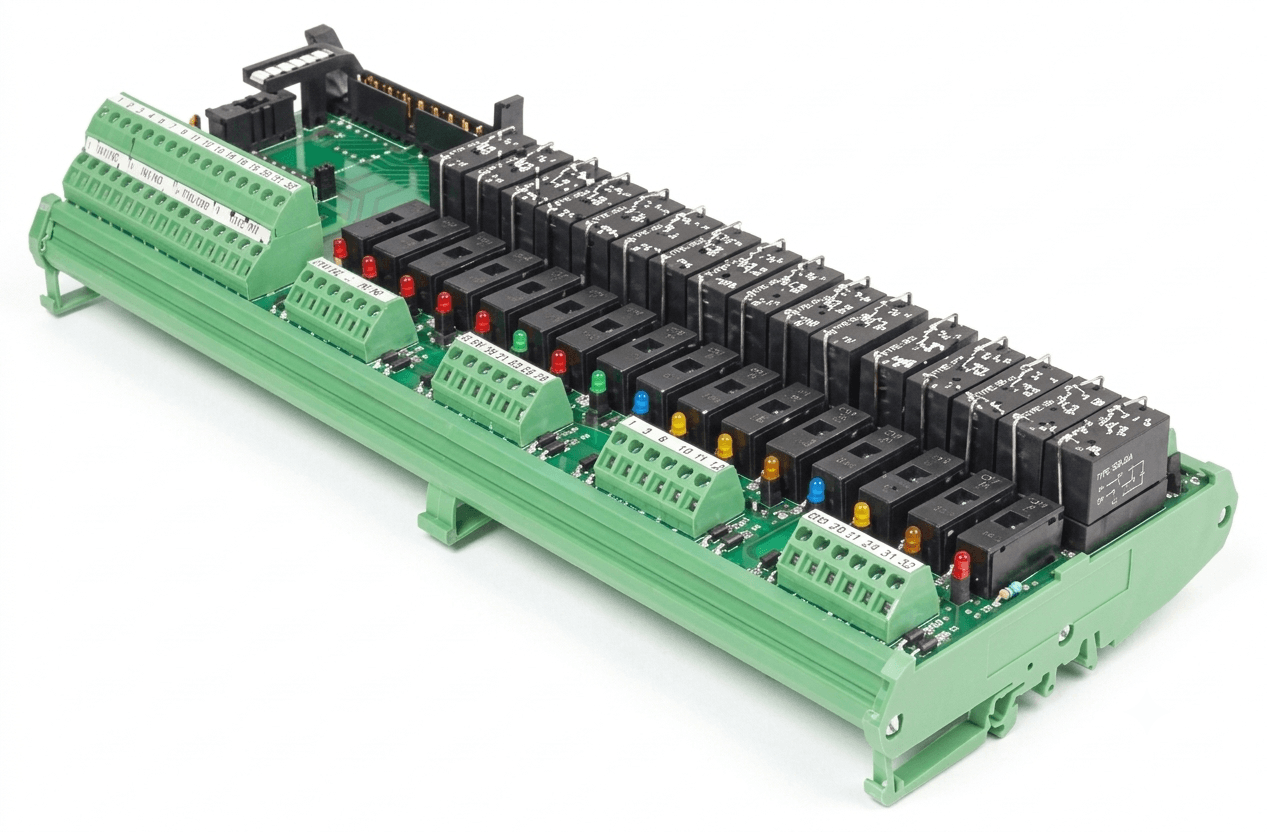

ONE CHANGE OVER - DC COIL VOLTAGE WITH FUSE & FUSE FAIL INDICATION
Technical Information
1/2/4/8/16 Channels other than specified are available on request.
By using jumper caps, remove all jumper caps to make relay independent
3 mm Red LED to indicate fuse fail
0°C to 50°C
Features
• Available in 1/2/4/8/16 Channels.
• Coil Voltage 5/12/24/48V DC.
• Switching Current 12A at 24V DC/ 250V AC.
• Freewheeling Diode across relay coil for protection.
TWO CHANGE OVER - DC COIL VOLTAGE WITH FUSE & FUSE FAIL INDICATION
Technical Information
1/2/4/8/16 Channels other than specified are available on request.
By using jumper caps, remove all jumper caps to make relay independent
3 mm Red LED to indicate fuse fail
0°C to 50°C
Features
• Available in 1/2/4/8/16 Channels.
• Coil Voltage 5/12/24/48V DC.
• Switching Current 5A at 30V DC/ 250V AC.
• Freewheeling Diode across relay coil for protection.
ONE CHANGE OVER - DC COIL VOLTAGE WITH SPRING TERMINALS
Technical Information
1/2/4/8/16 Channels other than specified are available on request.
By using jumper caps, remove all jumper caps to make relay independent
3 mm Red LED to indicate fuse fail
0°C to 50°C
Features
• Available in 1/2/4/8/16 Channels.
• Coil Voltage 5/12/24/48V DC.
• Switching Current 12A at 24V DC/ 250V AC.
• Freewheeling Diode across relay coil for protection.

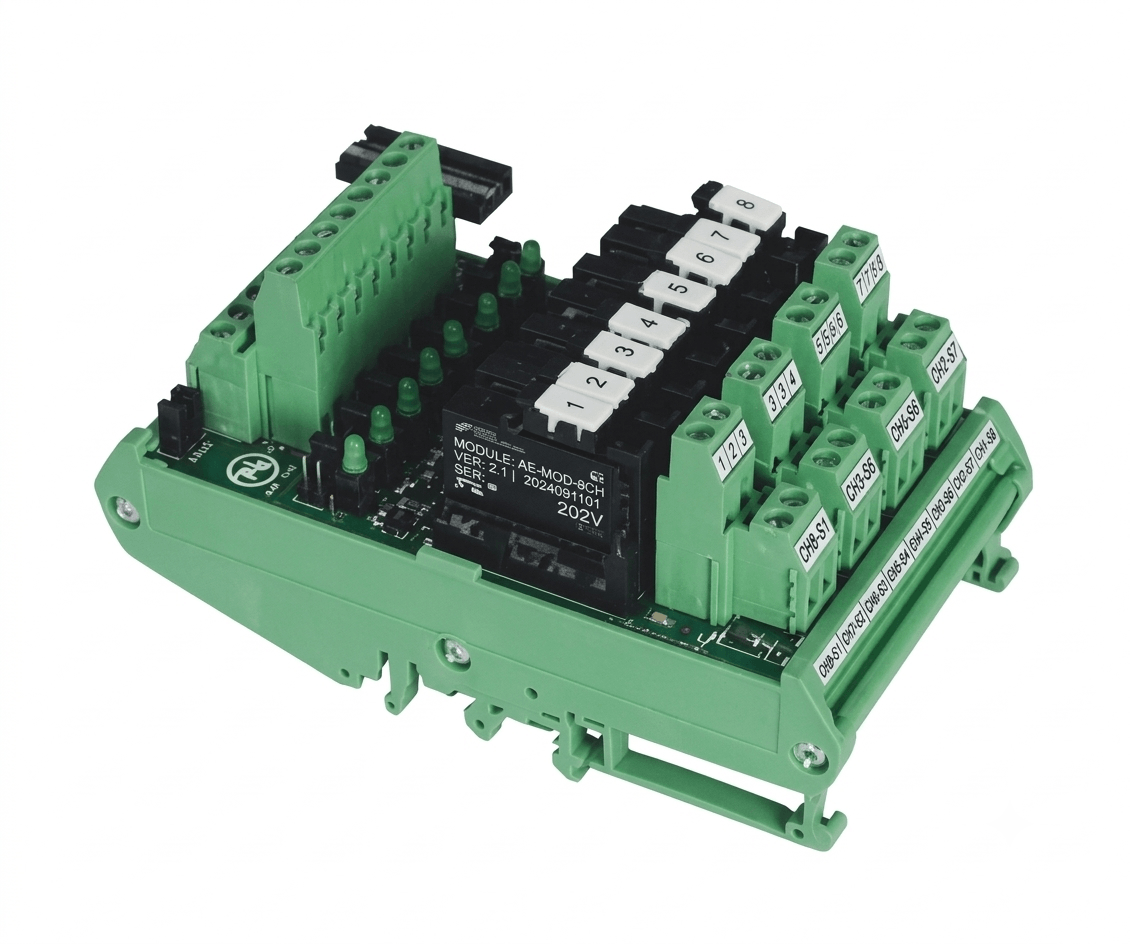

SOLID STATE RELAY MODULES - DC INPUT & DC/AC OUTPUT
Technical Information
1/2/4/8/16 Channels other than specified are available on request.
By using jumper caps, remove all jumper caps to make relay independent
3 mm Red LED to indicate fuse fail
Features
• Available in 1/2/4/8/16 Channels.
• Input Voltage 3-32V DC.
• Output Voltage 3-50V DC/24-280V AC.
• Rated Current 5A for DC/ 3A for AC.
SOLID STATE RELAY MODULES - DC INPUT & DC/AC OUTPUT WITH FUSE FAIL INDICATION
Technical Information
1/2/4/8/16 Channels other than specified are available on request.
By using jumper caps, remove all jumper caps to make relay independent
3 mm Red LED to indicate fuse fail
Features
• Available in 1/2/4/8/16 Channels.
• Input Voltage 3-32V DC.
• Output Voltage 3-50V DC/24-280V AC.
• Rated Current 5A for DC/ 3A for AC.

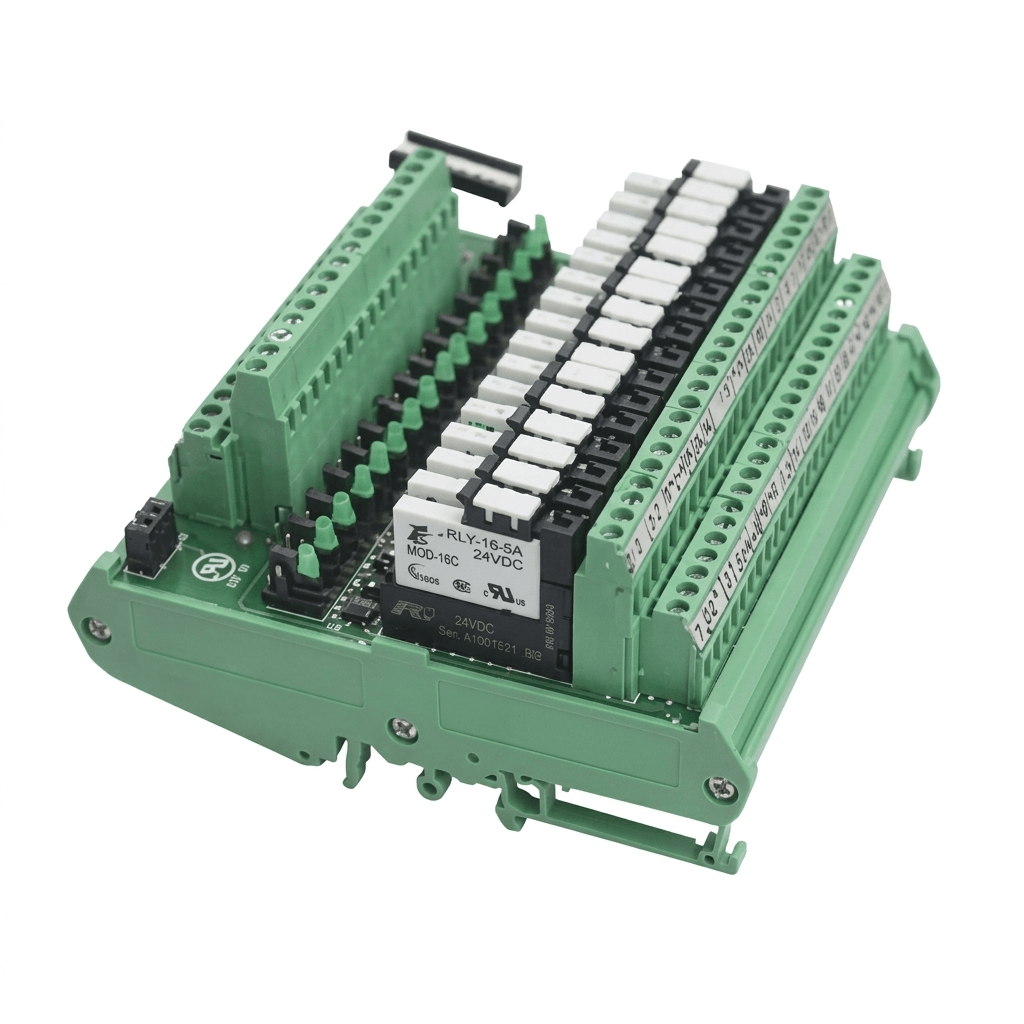

ONE CHANGE OVER - DC COIL VOLTAGE (COMPACT MODULE)
Technical Information
8/16/32 channels other than specified available on request.
By using jumper caps, remove all jumper caps to make relay independent
3 mm green LED for input status
0°C to 50°C
Features
• Available in 8/16/32 Channels.
• Coil Voltage 5/12/24/48V DC.
• Switching Current 6A at rated voltage.
• Freewheeling Diode across relay coil for protection.
SOLID STATE RELAY MODULES - DC INPUT & DC/AC OUTPUT (COMPACT MODULE)
Technical Information
8/16/32 channels other than specified available on request.
By using jumper caps, remove all jumper caps to make relay independent
3 mm green LED for input status
0°C to 50°C
Features
- Available in 8/16/32 Channels
- Input Voltage 3-32V DC
- Output Voltage 60V
- Rated Current 5A
Interface Passive Module

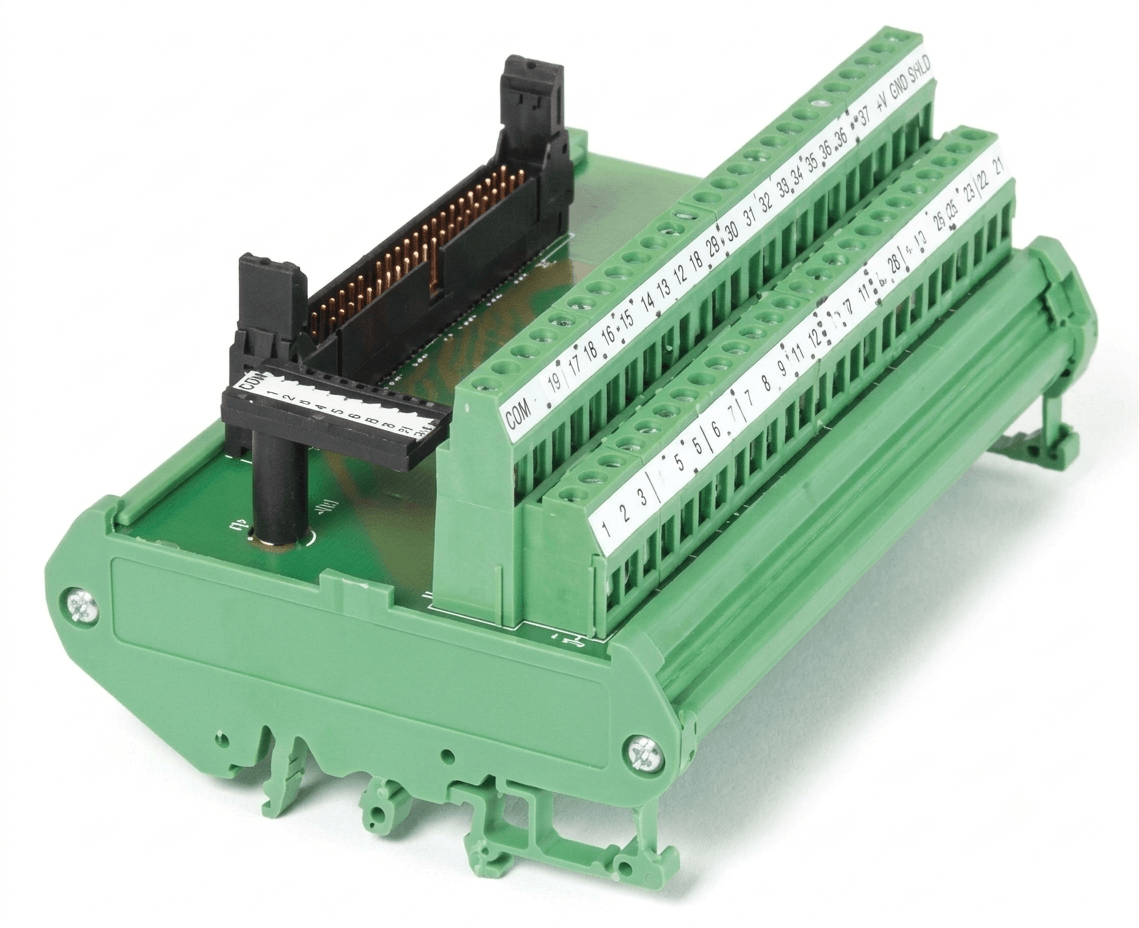

PASSIVE MODULE WITH FRC CONNECTORS
Technical Information
10 to 64
0°C to 50°C
PVC/V0 Grade, Phoenix Contact or equivalent
Green
Features
• Available in 10/14/16/20/26/34/40/50/60/64 Pin
Connectors
• With Screw Terminals, Spring Terminals on request.
• Mountable on Universal DIN Rail.

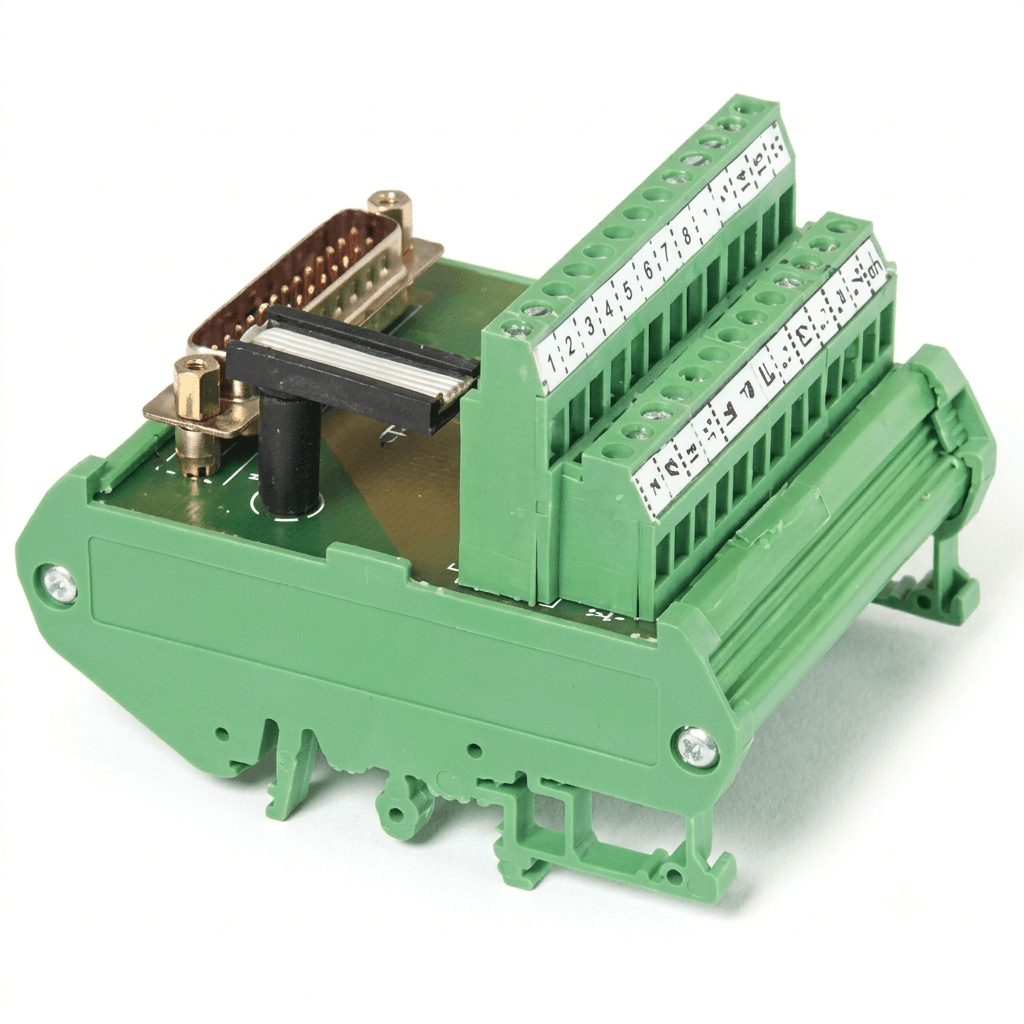

PASSIVE MODULE WITH D-SUB CONNECTORS
Technical Information
9 to 50
0°C to 50°C
PVC/V0 Grade, Phoenix Contact or equivalent
Green
Features
• Available in 9/15/25/37/50 Pin Male & Female
Connectors
• With Screw Terminals, Spring Terminals on request.
• Mountable on Universal DIN Rail.

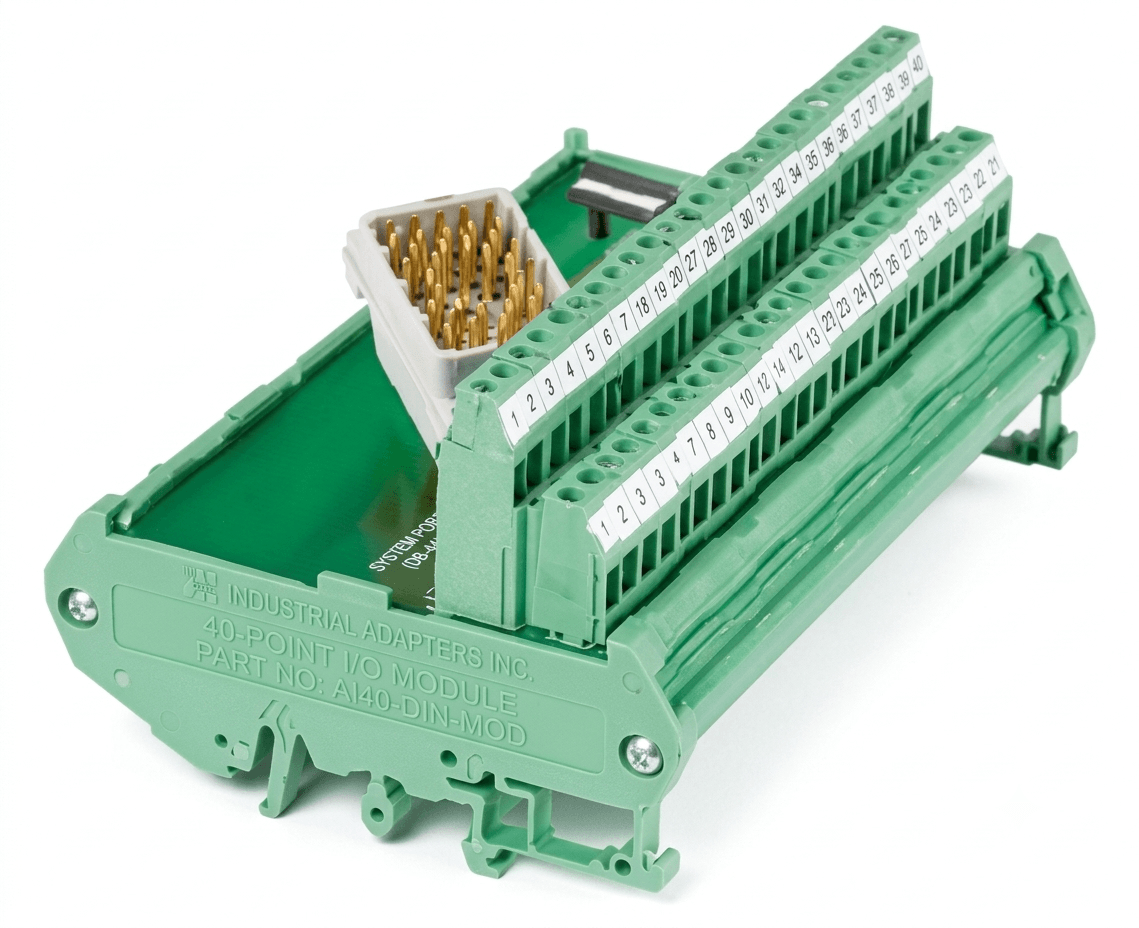

PASSIVE MODULE WITH ELCO/EDAC CONNECTORS
Technical Information
1
0°C to 50°C
PVC/V0 Grade, Phoenix Contact or equivalent
Green
Features
• Passive module having screw terminal at one end and
20/38/56 Pin EDAC connector at other end.
• Input and output are electrically connected with each
other in 1:1 connection.
• Mountable on Universal DIN Rail.

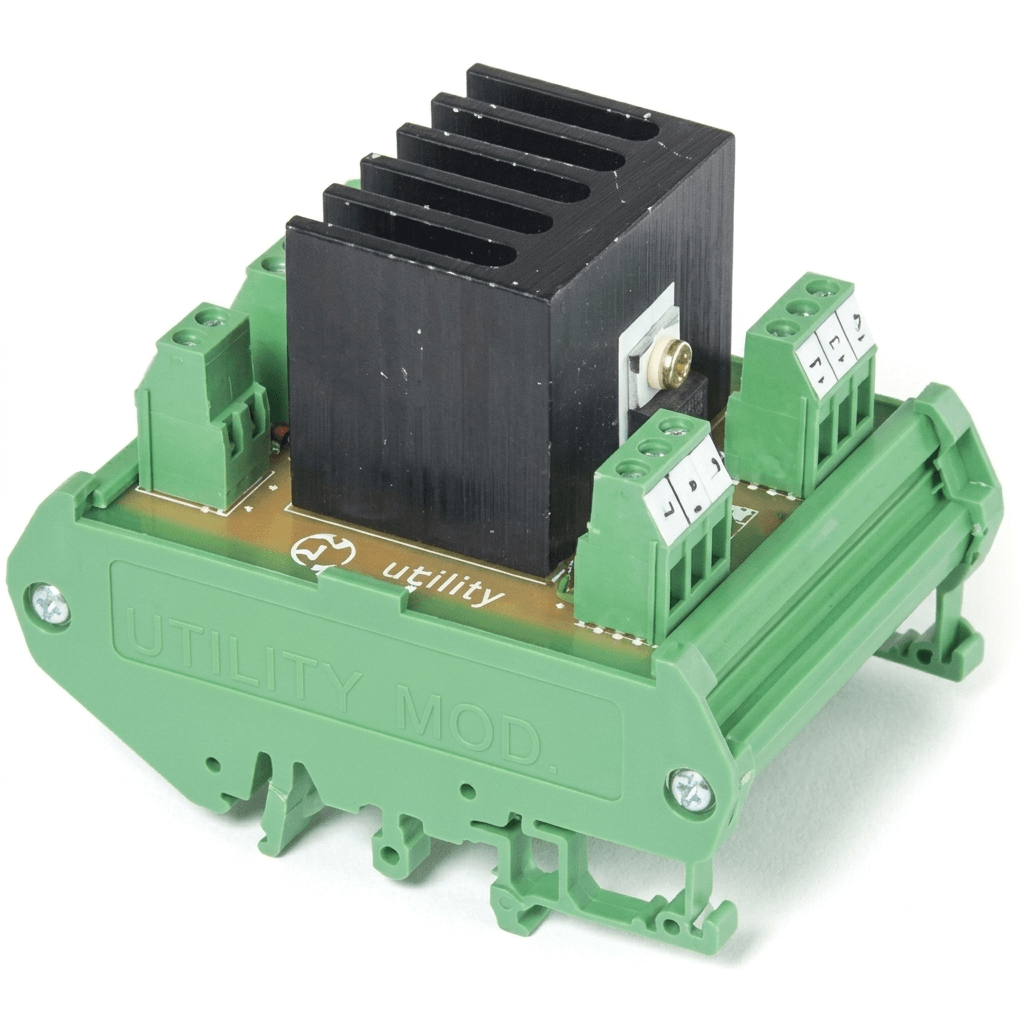

DIODE MODULE
Technical Information
1
0°C to 50°C
Redundant
Features
• Available in 10A/20A.
• With Screw Terminals, Spring Terminals on request.
• Mountable on Universal DIN Rail.
DIODE MODULE
Technical Information
1
0°C to 50°C
Redundant
Features
• Available in 10A/20A.
• With Screw Terminals, Spring Terminals on request.
• Mountable on Universal DIN Rail.

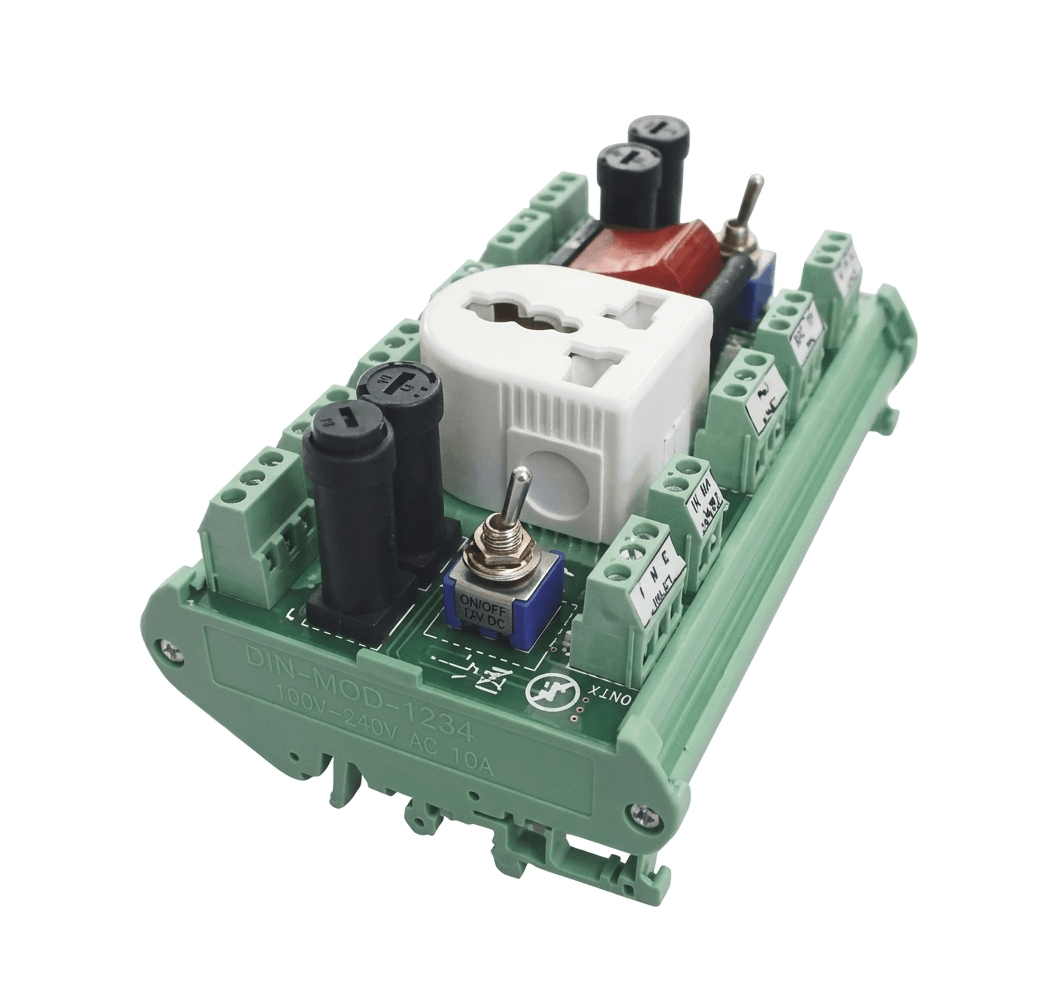

UTILITY MODULE
Technical Information
In path of Tube light front and rear, Fan front and rear, rating 1A
0°C to 50°C
PVC/V0 Grade, Phoenix Contact or equivalent
Green
Features
• PM UTILITY Module is used as a junction box for
panel lighting and fan load in control panels. It also has
on board 5A Utility socket with switch that can be used
for tapping 230V AC by simply plugging any 5A Power
plug.
• By default some points are for 230V AC and others are
for 110V AC but with the help of external jumpers,
complete module can be used at single potential.
Cable Assembly

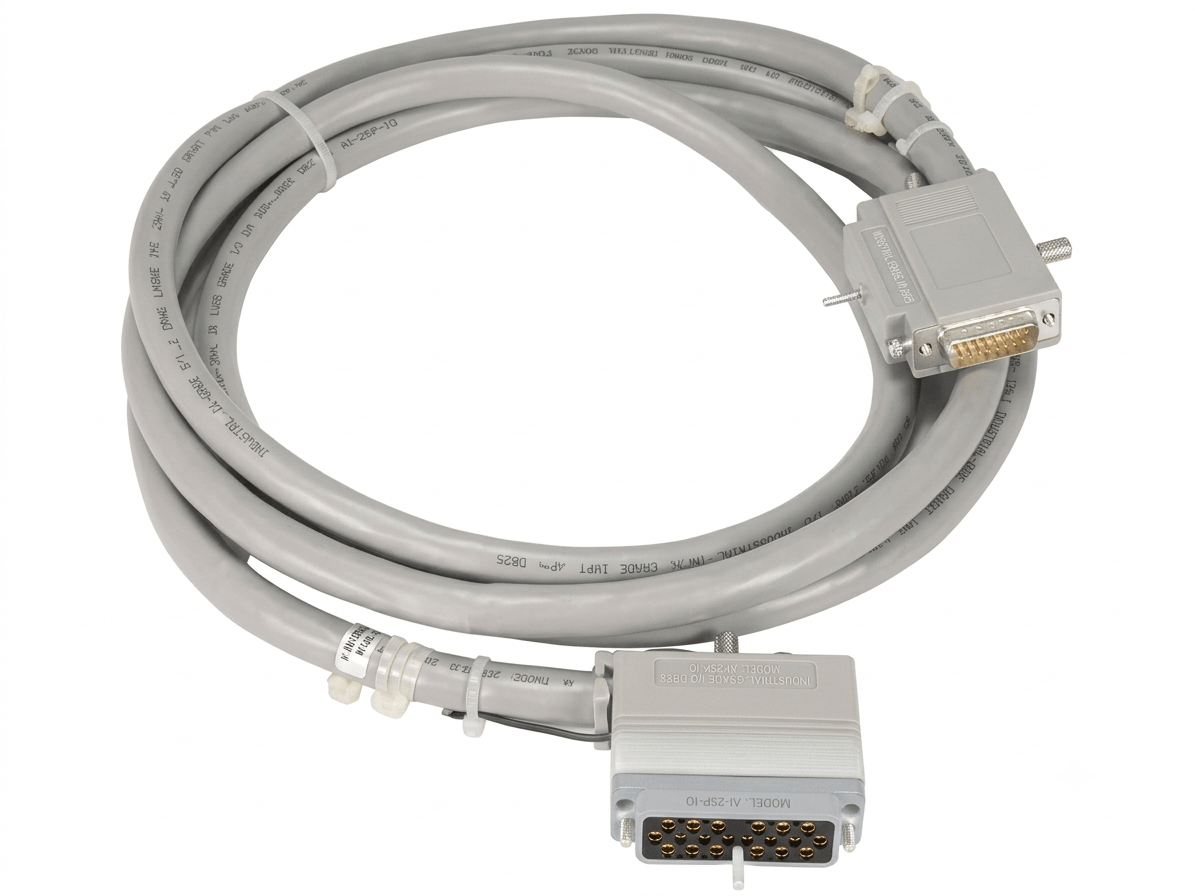

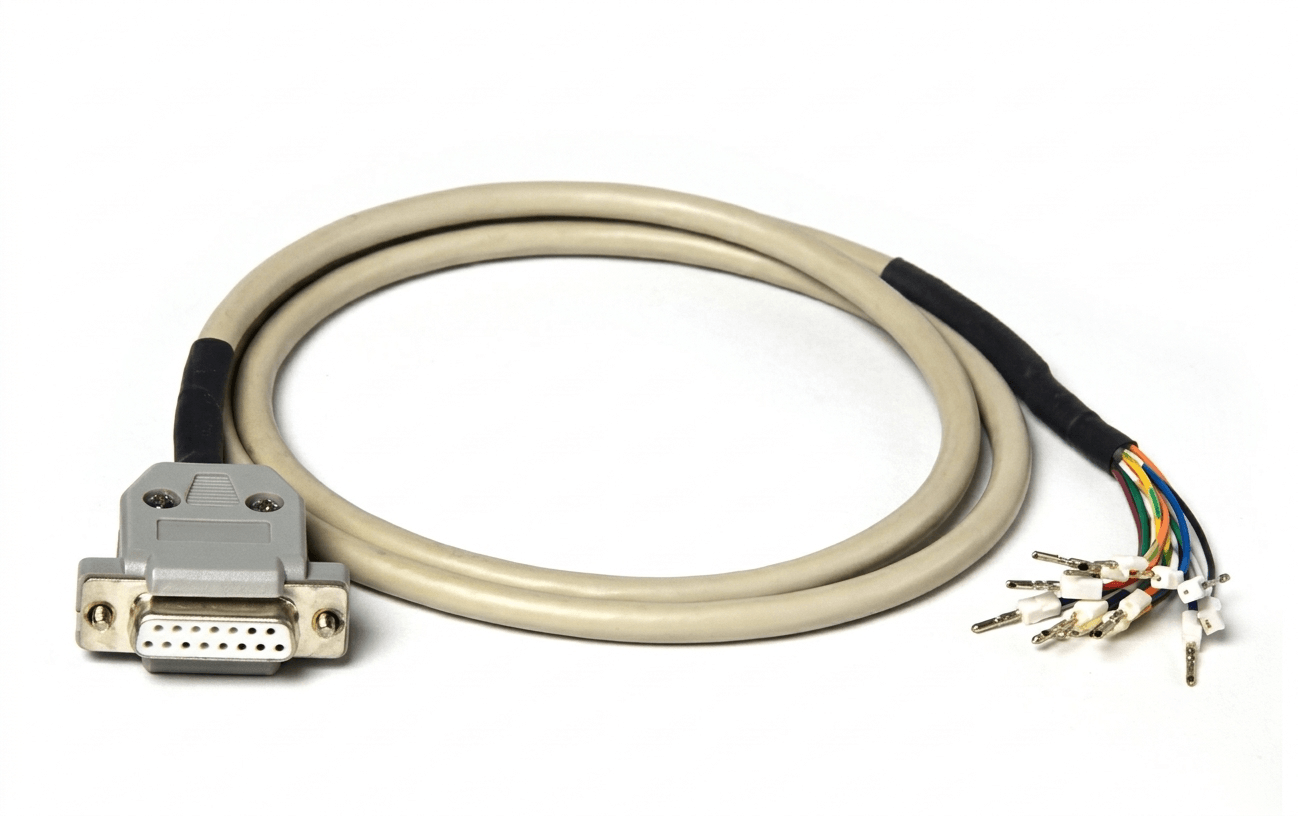

PREFABRICATED ROUND CABLES WITH D-SUB CONNECTOR
Specifications
• Cable conductor cross-section – AWG26/0.14 mm² ,
AWG24/0.25 mm²
• Max. permissible current capacity per path-2 A.
• Operating Voltage – 125V AC/DC.
Features
• Shielded/ non shielded cable assembly is available.
• Available in all customize lengths.
• Shielded/Non Shielded cable assembled with D-Sub
• Available in – 9,15, 25, 37,50 pos

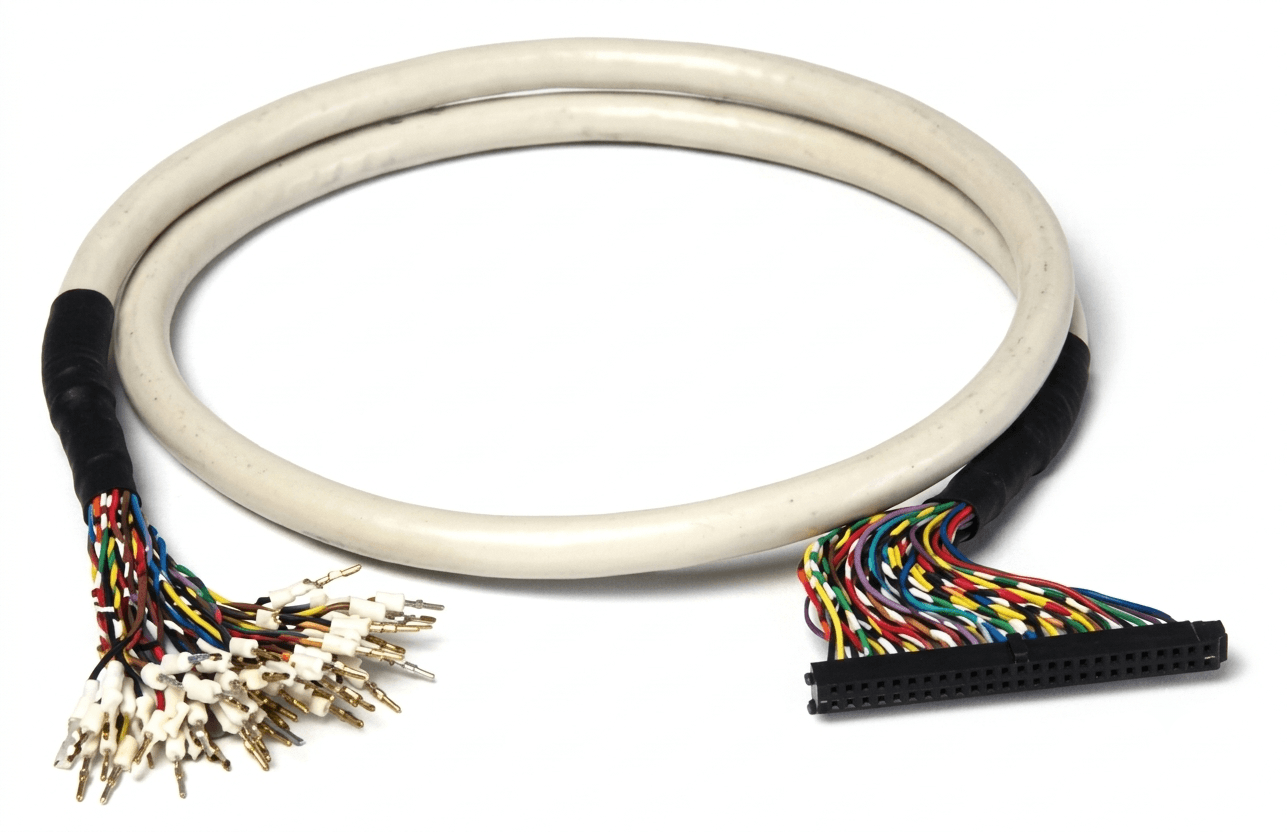

PREFABRICATED ROUND CABLES WITH FRC CONNECTOR
Specifications
• Cable conductor cross-section – AWG26/0.14 mm²
• Max. permissible current capacity per path-1 A.
• Operating Voltage – 50V AC/ 60V DC.
Features
• Shielded/ non shielded cable assembly is available.
• Available in all customize lengths.
• Shielded/Non Shielded cable assembled with
FRC connectors at both ends/one end and other end
open fitted with ferrules / lugs.
• Available in -10,14,16,20, 26,34,40,50.
PREFABRICATED ROUND CABLES WITH ELCO/EDAC CONNECTOR
Specifications
• Cable conductor cross-section – AWG26/0.14 mm²
• Max. permissible current capacity per path-2A.
• Operating Voltage- 125V AC/DC.
Features
• Shielded/ non shielded cable assembly is available.
• Available in all customize lengths.
• Shielded/Non Shielded cable assembled with
ELCO/EDAC connectors at both ends/one end and
other end open fitted with ferrules / lugs.
• Available in -20/38/56/90/120

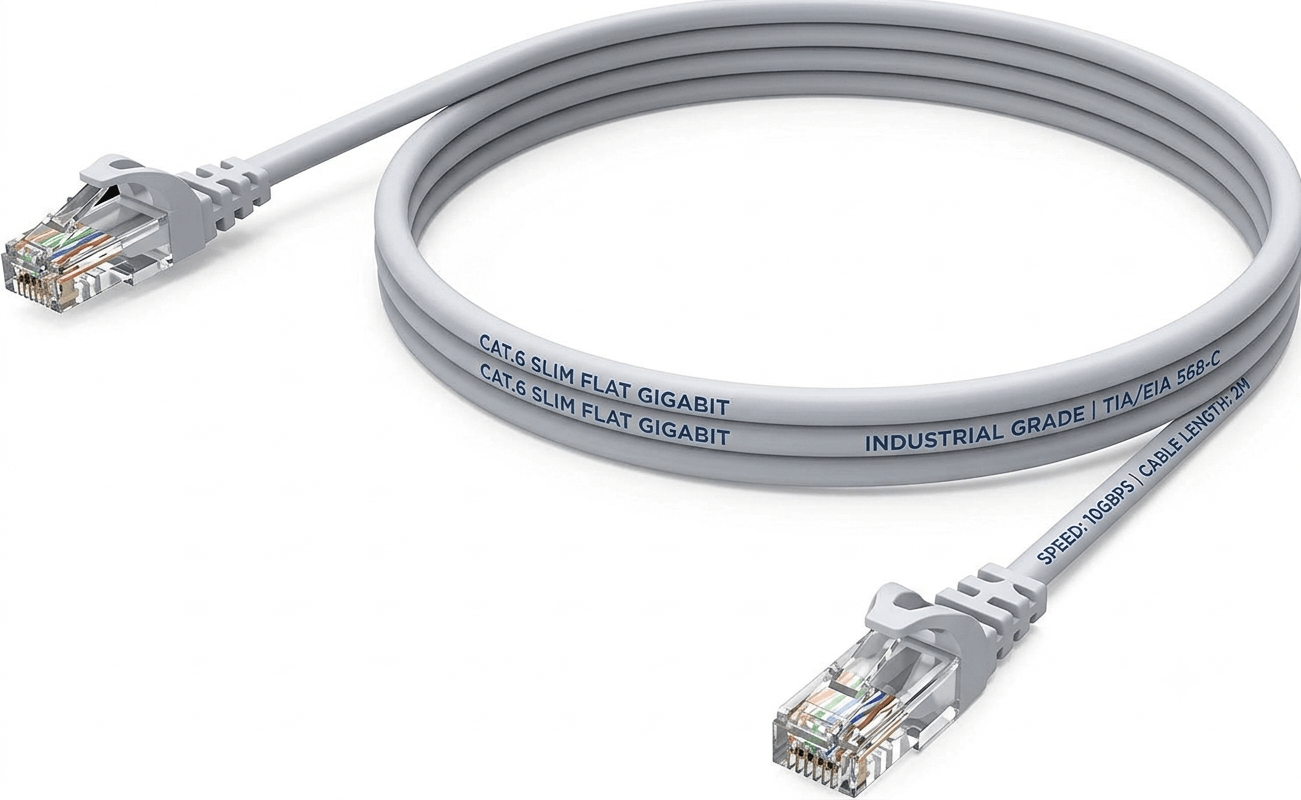

PREFABRICATED ROUND CABLES WITH RJ45 CONNECTOR
Specifications
• Shielded/ non shielded cable assembly is available.
• Available in all customize lengths.
• Shielded/Non Shielded cable assembled with
Rj45 connectors at both ends.
Features
• Prefabricated cables with RJ45 connector consists of a
length of cable with a male modular plug crimped to
each end of the cable. The RJ45 plugs have 8 flat
conductor contacts placed parallel to the connector body
to reduce assembly time and improve termination quality
in the field.
• RJ45 is a type of communication protocol that is used
for Ethernet and other long distance communications.
In this type of communication, Data is transmitted
between two electronics devices like Microcontrollers
or Microprocessors over a very long distance without
getting it lost.
CNC Interface Module
CNC MODULE WITH ELECTROMECHANICAL RELAY
Technical Information
3 mm green LED for input status
Free wheeling diode 1N4007 across relay coil
Paramount or equivalent
0°C to 50°C
Features
• Designed for interfacing CNC Machine controllers
having 24 inputs and 16 outputs with System Peripherals.
• Coil Voltage 24V DC.
• Switching Current 12A at 24V DC/ 250V AC.
• Freewheeling Diode across relay coil for protection.
• 50 Pin FRC Connector.
• LED indication to denote relay actuation.
• Available with pluggable relays, directly soldered on
request.
• With Screw Terminals, Spring Terminals on request
• Available with Fully Sealed Relay on request.
• Mountable on Universal DIN Rail.

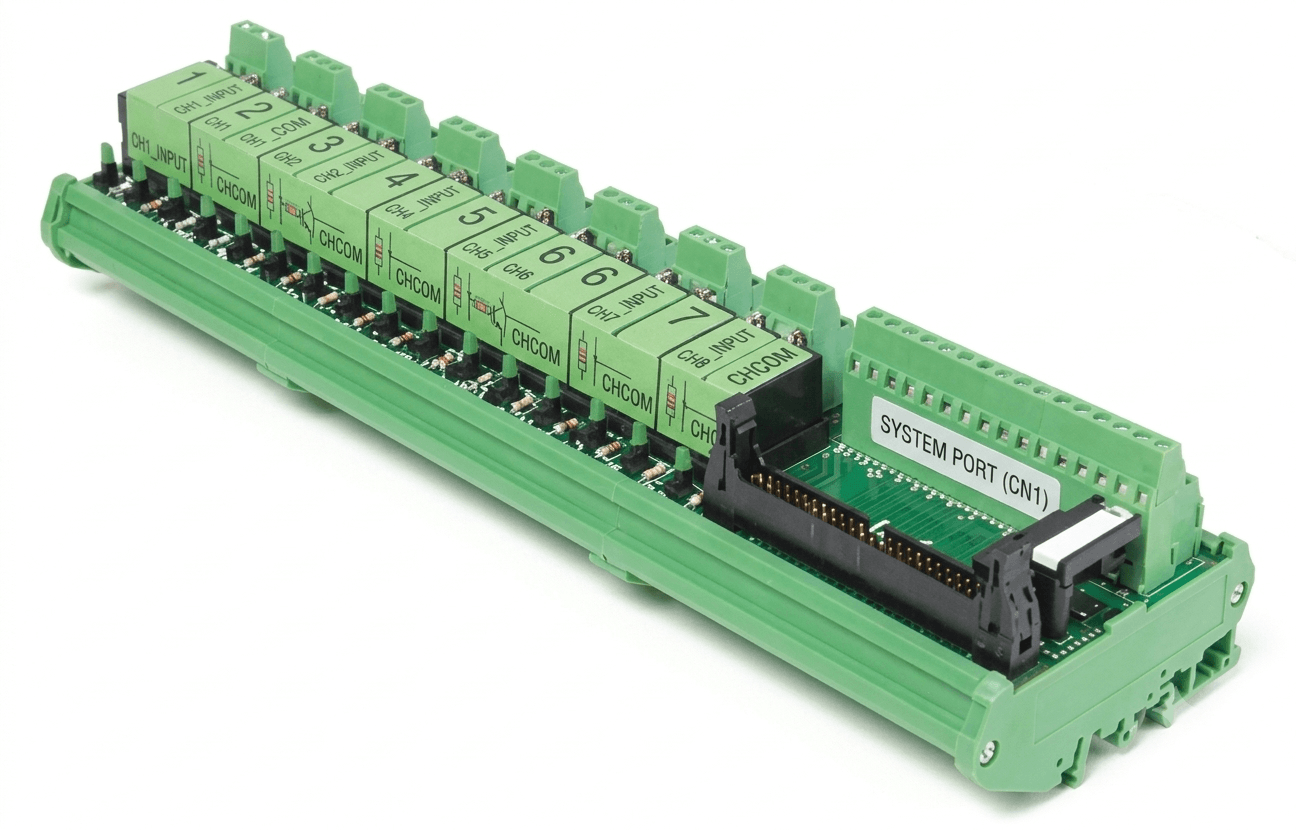

CNC MODULE WITH SOLID STATE RELAY
Technical Information
3 mm green LED for input status
Free wheeling diode 1N4007 across relay coil
Paramount or equivalent
0°C to 50°C
Features
• Designed for interfacing CNC Machine controllers
having 24 inputs and 16 outputs with System Peripherals.
• Input Voltage 3-32V DC.
• Output Voltage 3-50V DC.
• Rated current 5A.
• Freewheeling Diode across relay coil for protection.
• 50 Pin FRC Connector.
• LED indication to denote relay actuation.
• Available with Pluggable relays, directly soldered on
request.
• With Screw Terminals, Spring Terminals on request
• Mountable on Universal DIN Rail.
CNC MODULE WITH SOLID STATE RELAYS, SPRING TERMINALS AND FUSE & FUSE FAIL INDICATION
Technical Information
3 mm green LED for input status
Free wheeling diode 1N4007 across relay coil
Horizontal fuse 5x20 mm of 2A rating in common path of each contact of each relay
0°C to 50°C
Features
• Designed for interfacing CNC Machine controllers
having 24 inputs and 16 outputs with System Peripherals.
• Coil Voltage 24V DC.
• Switching Current 12A at 24V DC/ 250V AC.
• Freewheeling Diode across relay coil for protection.
• 50 Pin FRC Connector.
• LED indication to denote relay actuation.
• Available with pluggable relays, directly soldered on
request.
• With Screw Terminals, Spring Terminals on request
• Available with Fully Sealed Relay on
Need Help Choosing the Right Product?
Our technical experts are ready to assist you in selecting the most suitable electrical products for your industrial, commercial, or infrastructure project.
